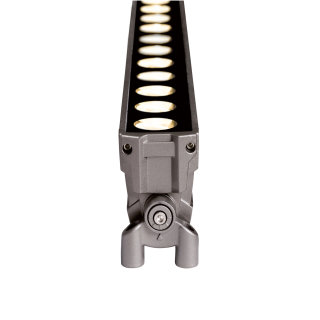

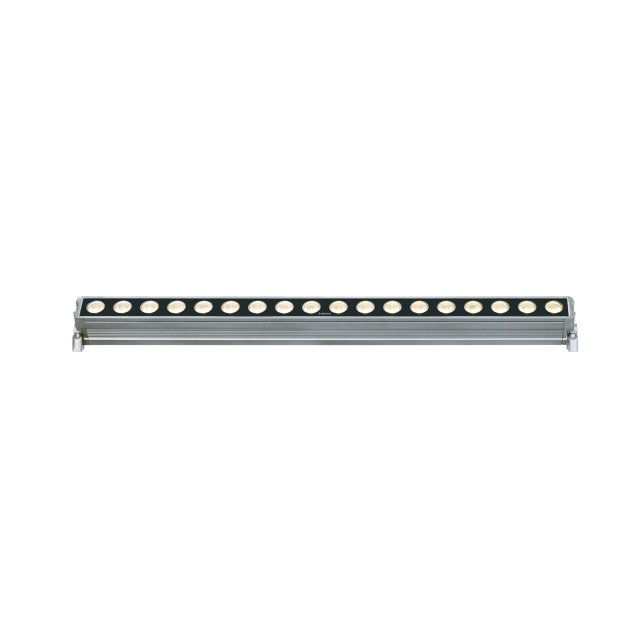

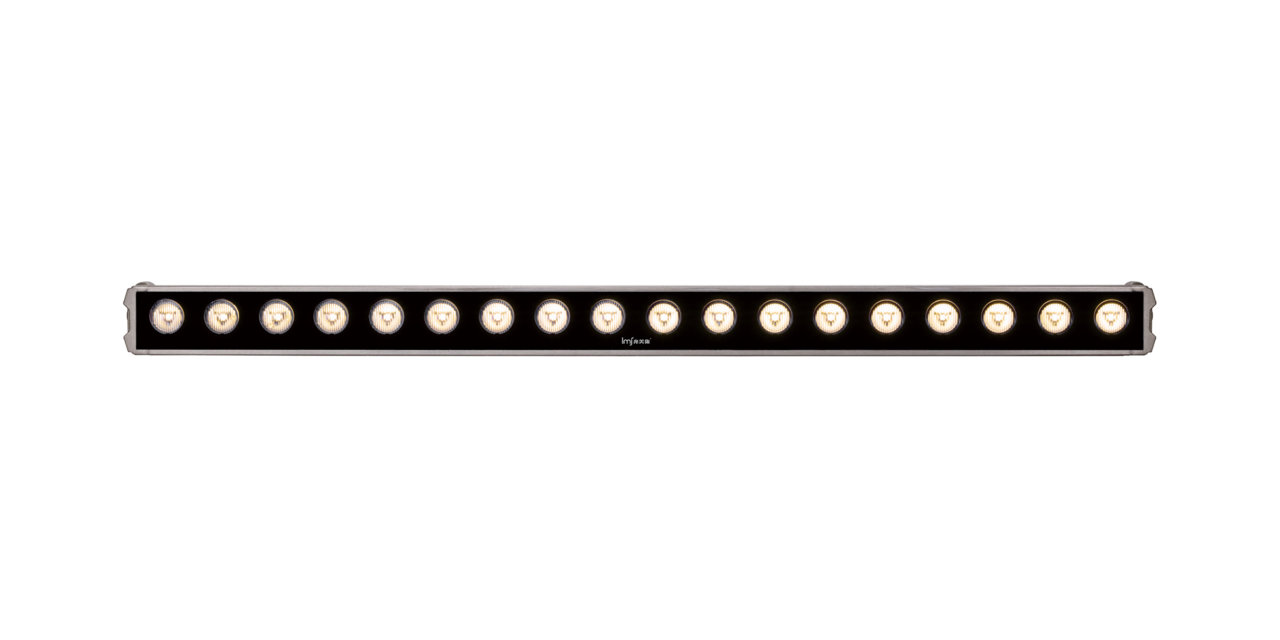

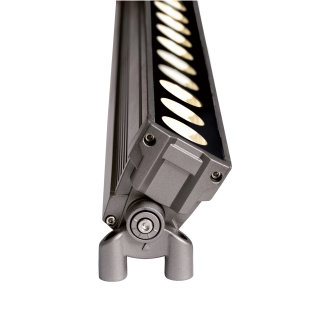

L2823 | Wall Washer

RGBW 4in1 Light source, mixed color effect level is rich, very narrow optical design, wall washing height up to 8-10M, suitable for high-rise building lighting.

Models

CCT

3000K
4000K
2200K
6500K
RGBK
RGBWK

Beam Angel

15°
13*40°
13°

LED/Light source quantiry

12个
36个

The 14 models

	Type	Fixture type	IP	CCT(K)	Fixture weight(kg)	Beam Angel(°)	Overall Size	LED/Light source quantiry(个)	Installation	Certification Type
	L2823/Q50-987WT-12	Linear Wallwasher	9	3000	3.8	15	2,987,66,100	12	wal-mounted、ground-mounted	UL、CE
	L2823/A01-987W-36	Linear Wallwasher	9	4000	3.8	13*40	2,987,66,100	36	wal-mounted、ground-mounted	UL、CE
	L2823/A01-987W-36	Linear Wallwasher	9	2200	3.8	13*40	2,987,66,100	36	wal-mounted、ground-mounted	UL、CE
	L2823/Q50-987WT-12	Linear Wallwasher	9	6500	3.8	15	2,987,66,100	12	wal-mounted、ground-mounted	UL、CE
	L2823/Q50-987WT-12	Linear Wallwasher	9	2200	3.8	15	2,987,66,100	12	wal-mounted、ground-mounted	UL、CE
	L2823/A01-987W-36	Linear Wallwasher	9	3000	3.8	13	2,987,66,100	36	wal-mounted、ground-mounted	UL、CE
	L2823/A01-987W-36	Linear Wallwasher	9	2200	3.8	13	2,987,66,100	36	wal-mounted、ground-mounted	UL、CE
	L2823/A01-987RGB-36	Linear Wallwasher	9	RGB	3.8	13*40	2,987,66,100	36	wal-mounted、ground-mounted	UL、CE
	L2823/A01-987W-36	Linear Wallwasher	9	4000	3.8	13	2,987,66,100	36	wal-mounted、ground-mounted	UL、CE
	L2823/Q50-987WT-12	Linear Wallwasher	9	4000	3.8	15	2,987,66,100	12	wal-mounted、ground-mounted	UL、CE
	L2823/C50-987RGBW-12	Linear Wallwasher	9	RGBW	3.8	13*40	2,987,66,100	12	wal-mounted、ground-mounted	UL、CE
	L2823/A01-987W-36	Linear Wallwasher	9	6500	3.8	13*40	2,987,66,100	36	wal-mounted、ground-mounted	UL、CE
	L2823/A01-987W-36	Linear Wallwasher	9	6500	3.8	13	2,987,66,100	36	wal-mounted、ground-mounted	UL、CE
	L2823/A01-987W-36	Linear Wallwasher	9	3000	3.8	13*40	2,987,66,100	36	wal-mounted、ground-mounted	UL、CE
