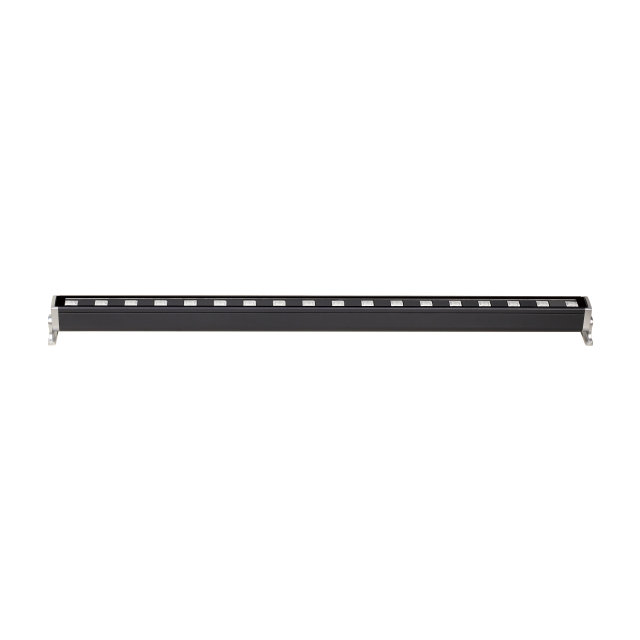

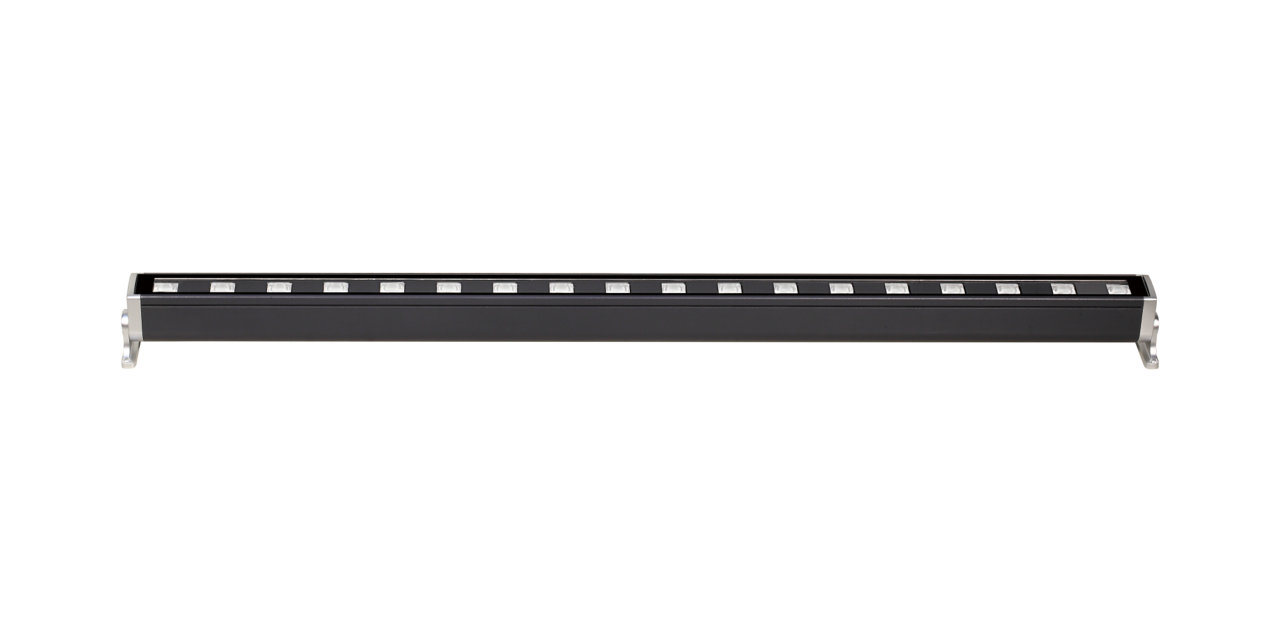

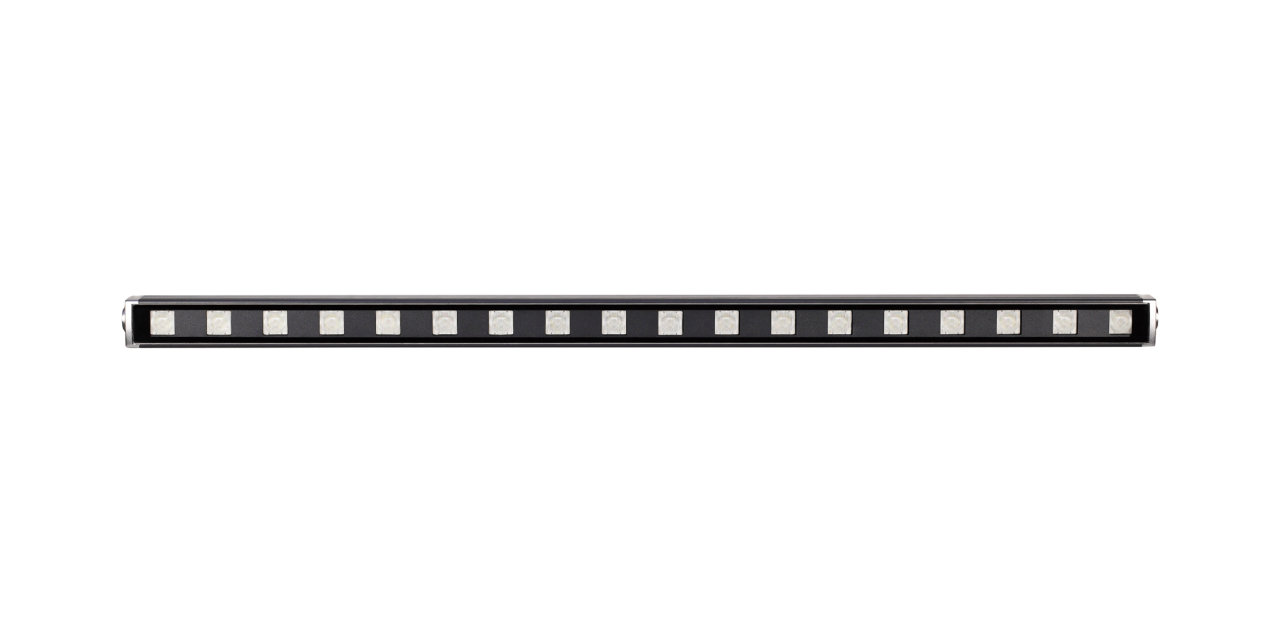

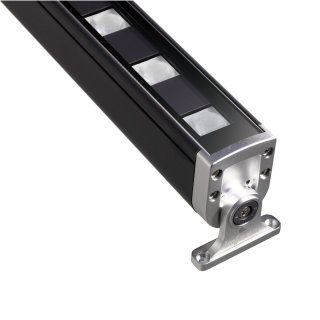

L2821 | Wall Washer

RGBW 4in1 Light source, mixed color effect level is rich, very narrow optical design, wall washing height up to 8-10M, suitable for high-rise building lighting.

Models

The light source power

9W
36W
18W

CCT

RGBK
RGBWK
2200K
2700K
3000K
3500K
4000K
6500K

Fixture weight

0.7kg
2kg
1.2kg

Beam Angel

10*60°
13°
13*40°
6*75°

Overall Size

2,300,60,78
2,1000,60,78
2,500,60,78

LED/Light source quantiry

9个
12个
6个
24个
36个
18个

The 7 models

	Type	Fixture type	IP	CCT(K)	Fixture weight(kg)	Beam Angel(°)	Overall Size	LED/Light source quantiry(个)	Installation	Certification Type
	L2821/A27-300RGB-9	Linear Wallwasher	9	RGB	0.7	10*60	2,300,60,78	9	wal-mounted、ground-mounted	UL、CE
	L2821/s27-1000RGBW-12	Linear Wallwasher	9	RGBW	2	10*60	2,1000,60,78	12	wal-mounted、ground-mounted	UL、CE
	L2821/A01-500W-12	Linear Wallwasher	9	2200、2700、3000、3500、4000、6500	1.2	13、1340、675	2,500,60,78	12	wal-mounted、ground-mounted	UL、CE
	L2821/A01-300W-6	Linear Wallwasher	9	2200、2700、3000、3500、4000、6500	0.7	13、1340、675	2,300,60,78	6	wal-mounted、ground-mounted	UL、CE
	L2821/A01-1000W-24	Linear Wallwasher	9	2200、2700、3000、3500、4000、6500	2	13、1340、675	2,1000,60,78	24	wal-mounted、ground-mounted	UL、CE
	L2821/A27-1000RGB-36	Linear Wallwasher	9	RGB	2	10*60	2,1000,60,78	36	wal-mounted、ground-mounted	UL、CE
	L2821/A27-500RGB-18	Linear Wallwasher	9	RGB	1.2	10*60	2,500,60,78	18	wal-mounted、ground-mounted	UL、CE
